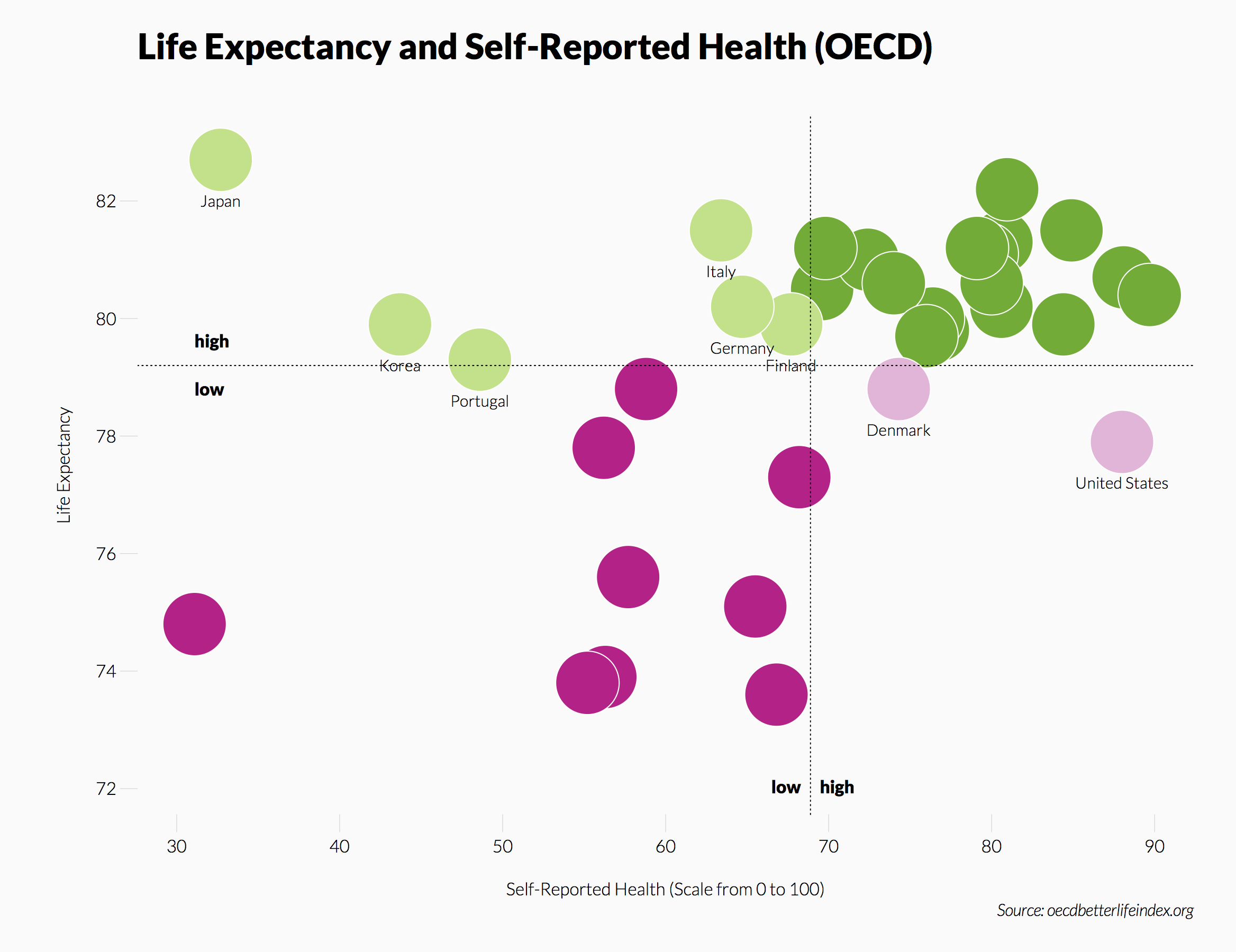

Streudiagramm Variante 1: vier Quadranten farblich unterschieden

streudiagramme_quadranten


streudiagramme_quadranten.pdf


pdf_datei<-"streudiagramme_quadranten.pdf" cairo_pdf(bg="grey98", pdf_datei,width=11.69,height=9) par(mar=c(4,4,0.5,2),omi=c(0.5,0.5,1,0),family="Lato Light",las=1) library(RColorBrewer) # Daten einlesen und Grafik vorbereiten daten<-read.csv(file="daten/BetterLifeIndex_Data_2011V6.csv",head=F, sep=";",dec=",",skip=6) daten<-daten[2:36,] attach(daten) x<-as.numeric(V16) y<-as.numeric(V15) xbez<-"Self-Reported Health (Scale from 0 to 100)" ybez<-"Life Expectancy" # Grafik definieren und weitere Elemente plot(type="n",xlab=xbez,ylab=ybez,x, y,xlim=c(30,90),ylim=c(72,83),axes=F) axis(1,col=par("bg"),col.ticks="grey81",lwd.ticks=0.5,tck=-0.025) axis(2,col=par("bg"),col.ticks="grey81",lwd.ticks=0.5,tck=-0.025) f1<-brewer.pal(5,"PiYG")[5] f2<-brewer.pal(5,"PiYG")[4] f3<-brewer.pal(5,"PiYG")[1] f4<-brewer.pal(5,"PiYG")[2] p1<-subset(daten[c("V2","V16","V15")],x > mean(x) & y > mean(y))
p2<-subset(daten[c("V2","V16","V15")],x < mean(x) & y > mean(y))
p3<-subset(daten[c("V2","V16","V15")],x < mean(x) & y < mean(y)) p4<-subset(daten[c("V2","V16","V15")],x > mean(x) & y < mean(y)) n1<-nrow(p1) n2<-nrow(p2) n3<-nrow(p3) n4<-nrow(p4) symbols(p1[,2:3],bg=f1,circles=rep(1,n1),inches=0.3,add=T,xpd=T,fg="white") symbols(p2[,2:3],bg=f2,circles=rep(1,n2),inches=0.3,add=T,xpd=T,fg="white") symbols(p3[,2:3],bg=f3,circles=rep(1,n3),inches=0.3,add=T,xpd=T,fg="white") symbols(p4[,2:3],bg=f4,circles=rep(1,n4),inches=0.3,add=T,xpd=T,fg="white") text(p2[,2:3],as.matrix(p2$V2),cex=0.9,pos=1,offset=1.75) text(p4[,2:3],as.matrix(p4$V2),cex=0.9,pos=1,offset=1.75) abline(v=mean(x,na.rm=T),col="black",lty=3) abline(h=mean(y,na.rm=T),col="black",lty=3) text(min(V16),mean(V15)+0.005*mean(V15),"high",family="Lato Black",adj=0) text(min(V16),mean(V15)-0.005*mean(V15),"low",family="Lato Black",adj=0) text(mean(V16)-0.001*mean(V16),72,"high",family="Lato Black",pos=4) text(mean(V16)+0.001*mean(V16),72,"low",family="Lato Black",pos=2) # Betitelung mtext("Life Expectancy and Self-Reported Health (OECD)",3,adj=0,line=2.5,cex=2.0,family="Lato Black") mtext("",3,adj=0,line=0,cex=1.0,font=3) mtext("Source: oecdbetterlifeindex.org",1,line=4,adj=1,cex=0.95,font=3) dev.off()





BetterLifeIndex_Data_2011V6.xls
